PE Enclosures + Annunciator Panel

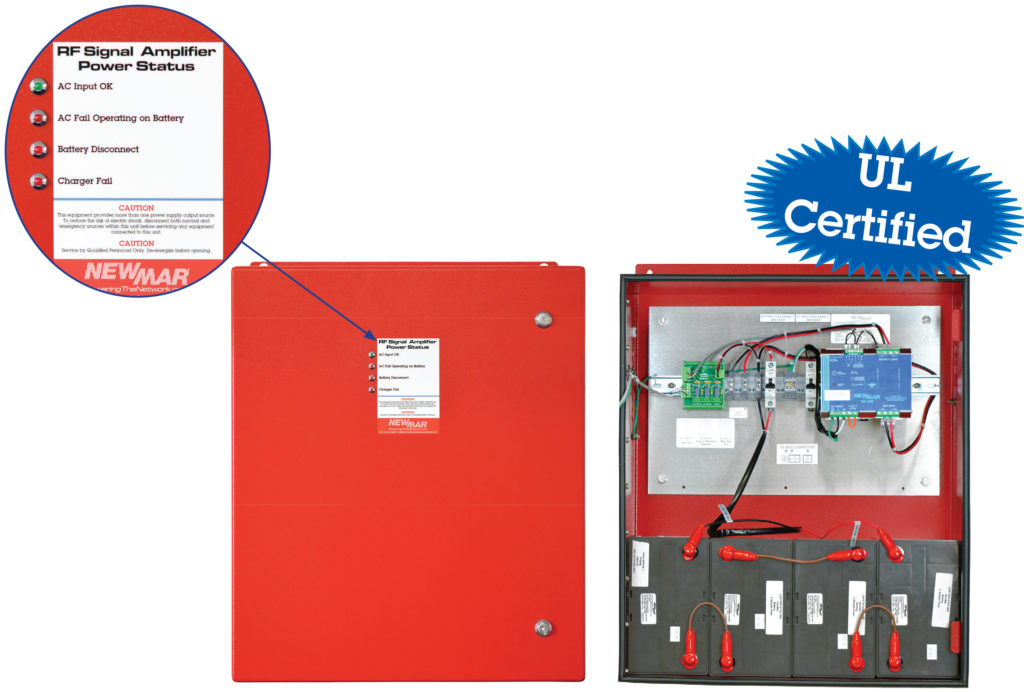

DC Power Enclosures - PE Series

IN STOCK – Power Enclosures ETL Listed to UL Standards 2524 & 924 Public Safety/BDA In-building Coverage

An integral part of an in-building solution for emergency response radio coverage is the backup power system. NFPA codes relating to the autonomous operation and monitoring of the BDA power is quite stringent. These back up power enclosures were engineered to meet every aspect of NFPA 1221 and provide integrators configuration flexibility and rapid delivery directly to site, batteries included.

PE Enclosures Webinar
Safer Buildings Coalition LogoImage

Features

• ETL Listed to UL Standards 2524 and 924 (models with UL2524 or UL suffix)
• NFPA Compliant with all required monitoring alarms
• Batteries included - choose capacity to match system requirements
• NEMA-4 Enclosure
• Prewired internal & external, with waterproof feed thru’ s for easy on-site connections
• Customization to meet local AHJ ‘s requirements

REQUEST MORE INFORMATION:

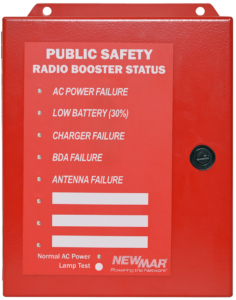

Annunciator Panel Available ----------->

AP-8000B is designed to meet NFPA 1221 standards for a dedicated BDA and BDA battery
back-up annunciation panel.

Learn More
Annunciator Panel

Specifications

Input: 115 /230 VAC (factory wired for 120V AC)
Outputs: Available in 12, 24, 48 VDC and 100 VAC, with 120, 240 and 480 Watt DC UPS
Operating Temperature: -10° C to 40° C
Protections: Battery breaker, AC input breaker, NEMA 4 enclosure
NFPA Compliant Alarms (Form C, Dry Contact)
• AC fail
• Battery discharged to 30% of capacity
• Charger fail
Batteries Included: maintenance free, valve regulated, sealed lead acid, 18, 55, and 100 AH capacity
External wiring:
• AC Input: 16 AWG, UL 3 conductor, SJT jacket , 12’, with molded plug
Enclosure Size Including Mounting Flanges (H x W x D):
Enclosure A: 30" x 23" x 11.625"
Enclosure B: 25" x 24" x 24"
Enclosure C: 24" x 16" x 8"
Enclosure A: NEMA-4, UL listed (E465553), welded aluminum with IP 65 battery vent and locking door, 4 each 1/2” knock-outs for cable entry on sides and bottom (16 total), IP-68 cable entries. Red powder coat wall mount.
Enclosure B: NEMA-4, welded aluminum with IP 65 vent, pad lockable door handle, 8 each 1/2” knock-outs for cable entry (4 ea. on bottom left and right), IP-68 cable entries. Red powder coat wall mount.
Enclosure C: NEMA-4, UL listed, welded aluminum enclosure with IP65 rated vent, two key door locks, two IP68 3/4” liquid tight cord grips (top left), one IP68 1/2” liquid tight cord grip (top right), red texture powder coated with welded upper and lower mounting flanges for wall mounting and internal door enclosure grounding studs.

Power Enclosure Series Specifications for NFPA 1221 Standards

Model Listed to UL Standard DC Voltage Max. BDA Load Amps Battery A/H Capacity** Enclosure Case Size System Weight (Lbs.) Shipping Weight (Lbs.)
PE-12V-120W-18AH N/A 12V 1.5A 18 A 49 89
PE-12V-120-18AH-UL2524 2524 & 924 12V 1.2A 18 A 49 89
PE-12V-120W-55AH N/A 12V 4.6A 55 A 75 115
PE-12V-120-55AH-UL2524 2524 & 924 12V 3.8A 55 A 75 115
PE-12V-120W-100AH N/A 12V 8.5A 100 A 111 151
PE-12V-120-100AH-UL2524 2524 & 924 12V 5A 100 A 111 151
PE-24V-240W-18AH N/A 24V 1.5A 18 A 63 103
PE-24V-240-18AH-UL2524 2524 & 924 24V 1.2A 18 A 63 103
PE-24V-240W-55AH N/A 24V 4.6A 55 A 114 154
PE-24V-240-55AH-UL2524 2524 & 924 24V 3.8A 55 A 114 154
PE-24V-240W-100AH N/A 24V 8.5A 100 A 186 226
PE-24V-240-100AH-UL2524 2524 & 924 24V 5A 100 A 186 226
PE-48V-265W-18AH N/A 48V 5.5A 18 C 81 116
PE-48V-265W-36AH N/A 48V 5.5A 36 C 138 173
PE-48V-480W-18AH N/A 48V 1.5A 18 A 90 130
PE-48V-480-18AH-UL2524 2524 & 924 48V 1.2A 18 A 90 130
PE-48V-480W-55AH N/A 48V 4.6A 55 A 190 230
PE-48V-480-55AH-UL2524 2524 & 924 48V 4A 55 A 190 230
PE-48V-480W-82AH No 48V 6.6A 82 B 283 323
PE-48V-480-82AH/UB-UL2524 2524 & 924 48V 7.0A 82 A 284 324
PE-48V-480W-100AH N/A 48V 8.5A 100 B 371 411
PE-48V-480-100AH-UL 2524 2524 & 924 48V 8.5A 100 B 371 411
PE-110V-100W-100AH/24V * N/A 110V AC 1.5A 100 A 191 231
PE-110V-165-100AH/24V-UL2524 * 2524 & 924 110V AC 1.4A 100 A 191 231

* Models PE-110V-100W-100AH/24V and PE-110V-100W-165AH/24V-UL-2524 are 110V AC
**See below for battery specifications
UL: Models ETL Listed to UL Standard 2524 & 924

**See below for battery specifications

PE Series Battery Run Time Specifications for NFPA 1221 Standards

Model Amp-Hours Max Continuous Load 2 Hour Rating Max Continuous Load 12 Hour Rating** Max Continuous Load 24 Hour Rating**
PE-12V-120-18AH-UL2524* 18 N/A 1.2A/15.2W .75A/9W
PE-12V-120-55AH-UL2524* 55 N/A 3.8A/48.2W 2.33A/28W
PE-12V-120-100AH-UL2524* 100 N/A 5A/63.5W 4.6A/55W
PE-24V-240-18AH-UL2524* 18 N/A 1.2A/29.4W .75A/18W
PE-24V-240-55AH-UL2524* 55 N/A 3.8A/93.1W 2.33A/56A
PE-24V-240W-100AH 100 N/A 5A/120W 4.6A/110W
PE-24V-240-100AH-UL2524* 100 N/A 5A/122.5W 4.6A/110W
PE-48V-265W-18AH 18 5.5A 1.5A .75A
PE-48V-265W-36AH 36 5.5A 3A 1.5A
PE-48V-480-18AH-UL2524* 18 N/A 1.2A/60W .75A/36W
PE-48V-480W-55AH 55 N/A 4A/192W 2.33A/112W
PE-48V-480W-82AH 82 N/A 6.6A 3.47A
PE-48V-480-82AH/UB-UL2524* 82 N/A 7.0A 3.7A
PE-48V-480-55AH-UL2524* 55 N/A 4A/200W 2.33A/112W
PE-48V-480-100AH-UL2524* 100 N/A 8.5A/392W 4.6A/221W
PE-110V-165W-100AH/24V-UL2524 100 N/A 1.4A/165W .82A/96W

* ETL Listed to UL 2524 Standards
** Based on 100% duty cycle. Back-up time increase if intermittent duty cycle loads applied.

PE Series Battery Specifications for NFPA 1221 Standards

Model Battery Quantity Electrolyte Content
Pounds		 Electrolyte Content
Gallons
PE-12V-120-18AH-UL2524* ES17-12S 1 1.9 03
PE-12V-120-55AH-UL2524* XP12-210FR 1 7.6 0.8
PE-12V-120-100AH-UL2524* PYL12V100FS 1 22.8 1.6
PE-24V-240-18AH-UL2524* ES17-12S 2 3.9 0.6
PE-24V-240-55AH-UL2524* XP12-210FR 2 15.2 1.6
PE-24V-240W-100AH PYL12V100FS 2 45.7 3.2
PE-24V-240-100AH-UL2524* PYL12V100FS 2 45.7 3.2
PE-48V-265W-18AH ES17-12S 4 7.7 1.3
PE-48V-265W-36AH ES17-12S 8 15.4 2.6
PE-48V-480-18AH-UL2524* ES17-12S 4 7.7 1.3
PE-48V-480W-55AH XP12-210FR 4 30.5 3.2
PE-48V-480W-55AH-UL2524* XP12-210FR 4 30.5 3.2
PE-48V-480W-82AH XP12-300FRT6 4 19.84 1.32
PE-48V-480-82AH/UB-UL2524* XP12-300FRT6 4 4.3 .94
PE-48V-480W-100AH PYL12V100FS 4 91.3 6.3
PE-48V-480-100AH-UL2524* PYL12V100FS 4 91.3 6.3
PE-110V-100W-100AH/24V PYL12V100FS 2 91.3 6.3
PE-110V-165-100AH/24V-UL2524 PYL12V100FS 2 91.3 6.3

* ETL Listed to UL 2524 Standards

Public Safety DAS Power PE Series Enclosure Manual Library

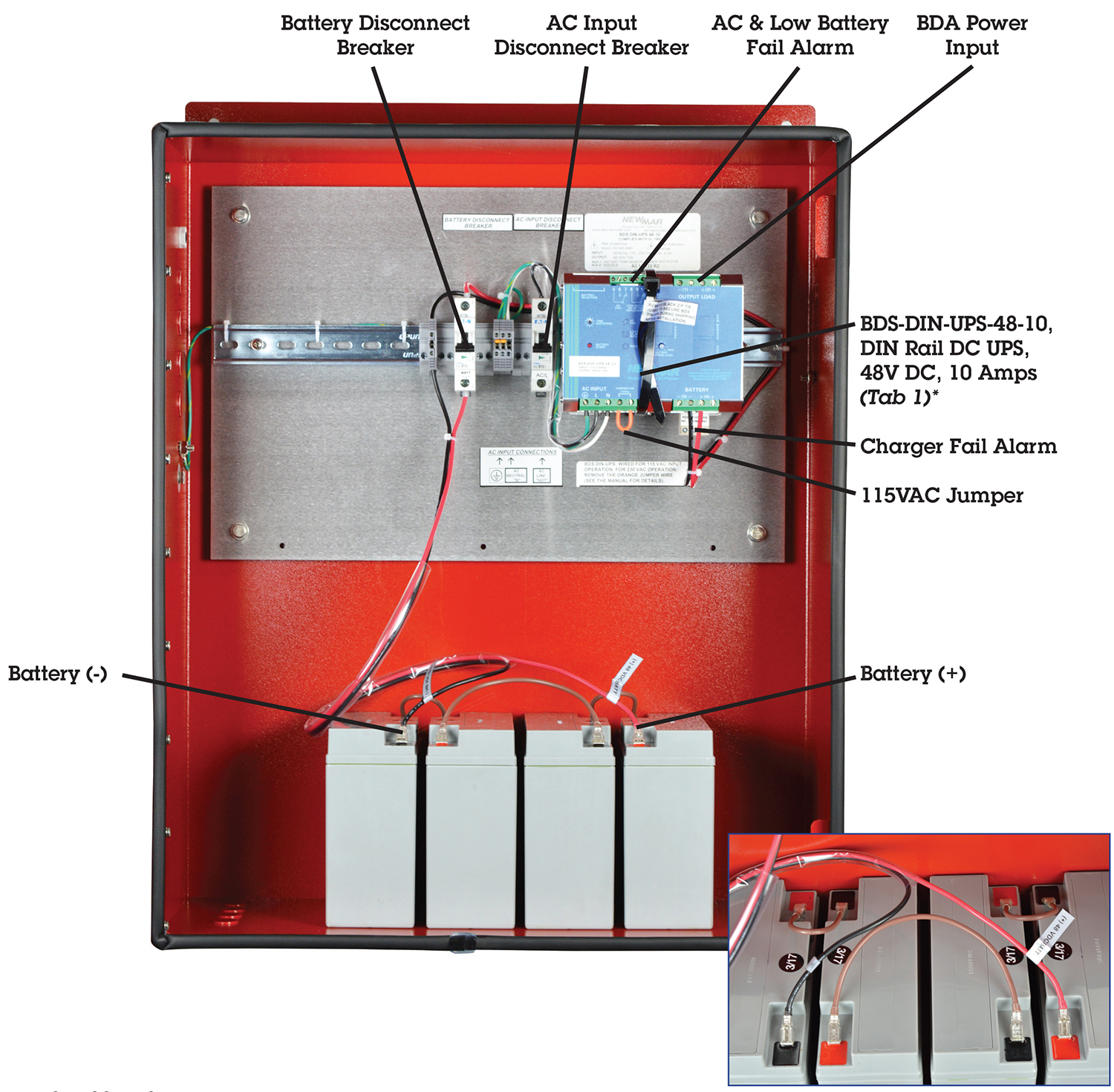

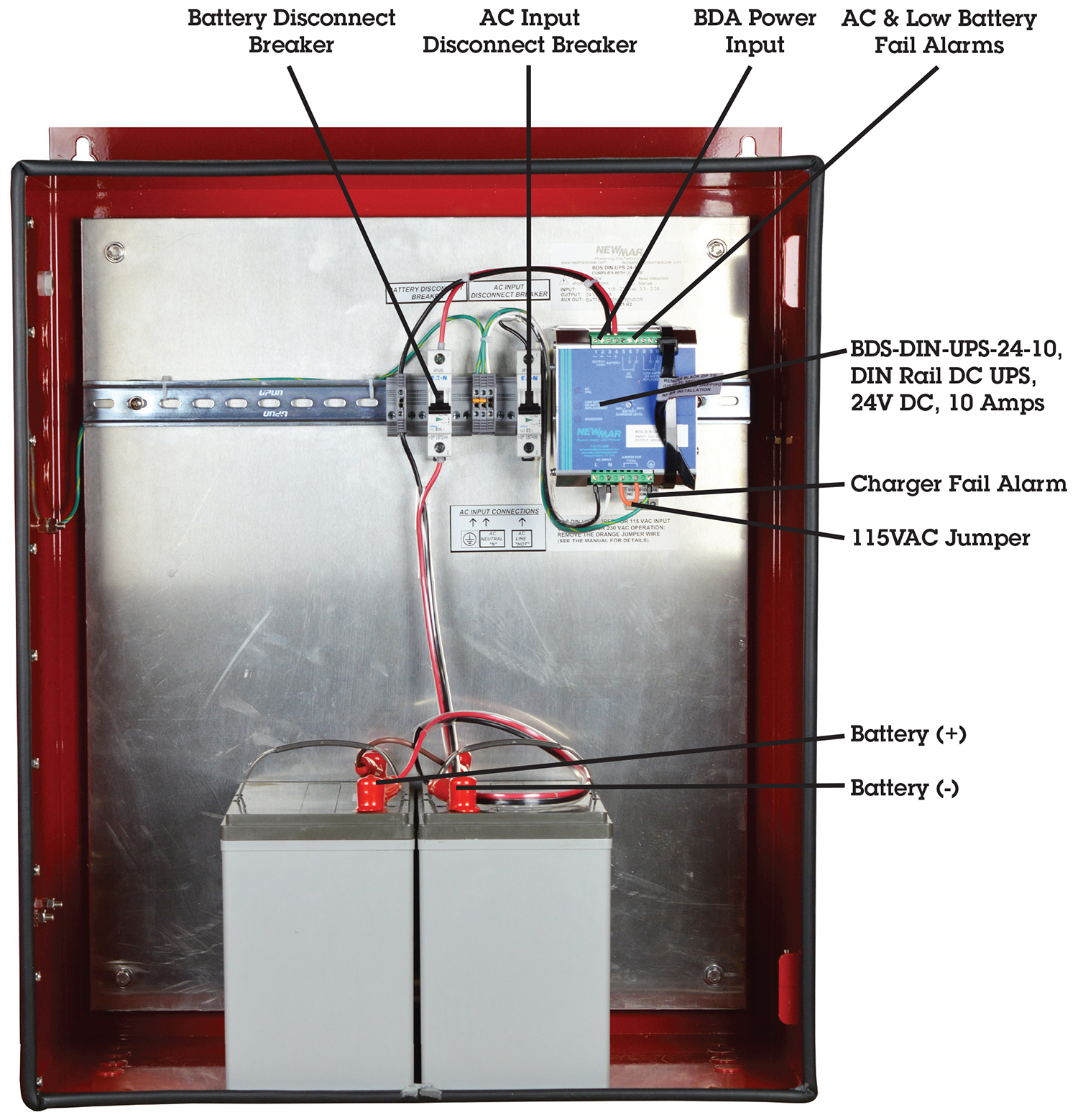

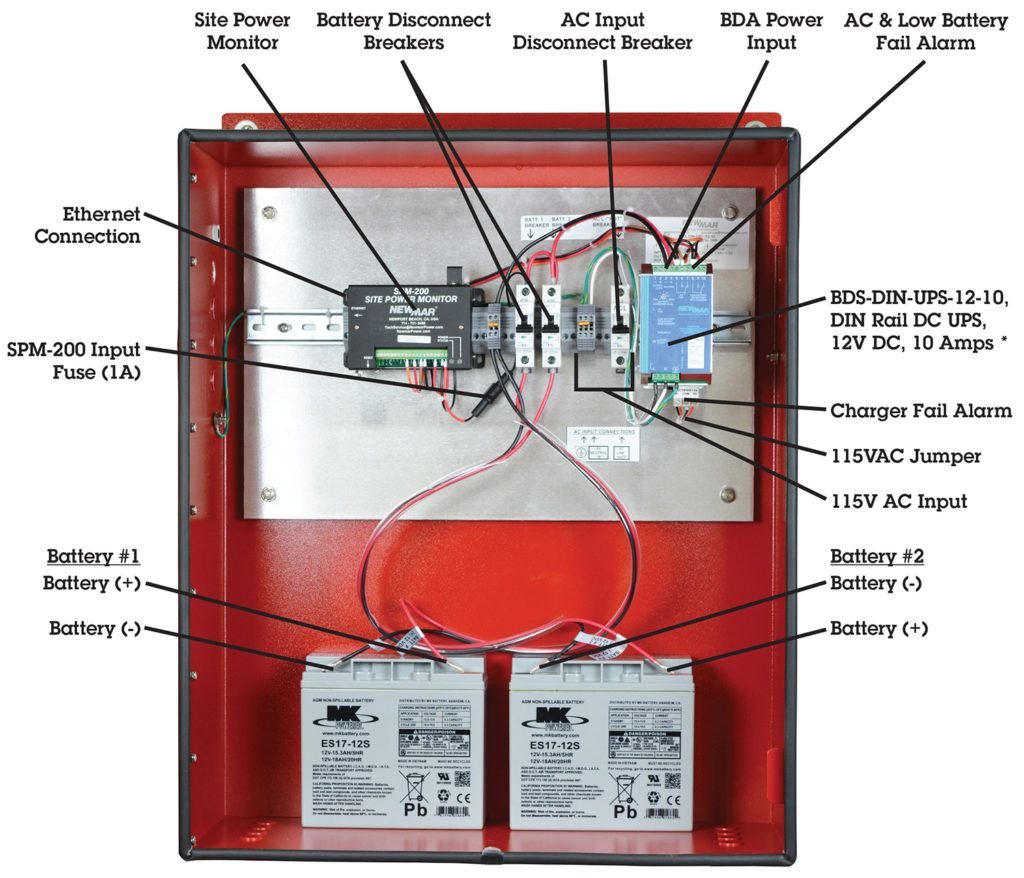

Each unit below is represented in the product matrix above. The systems are defined with call-outs of the major features including the BDS-DIN-UP DIN DC UPS Sytem, system input breakers, battery breakers, alarms and batteries.

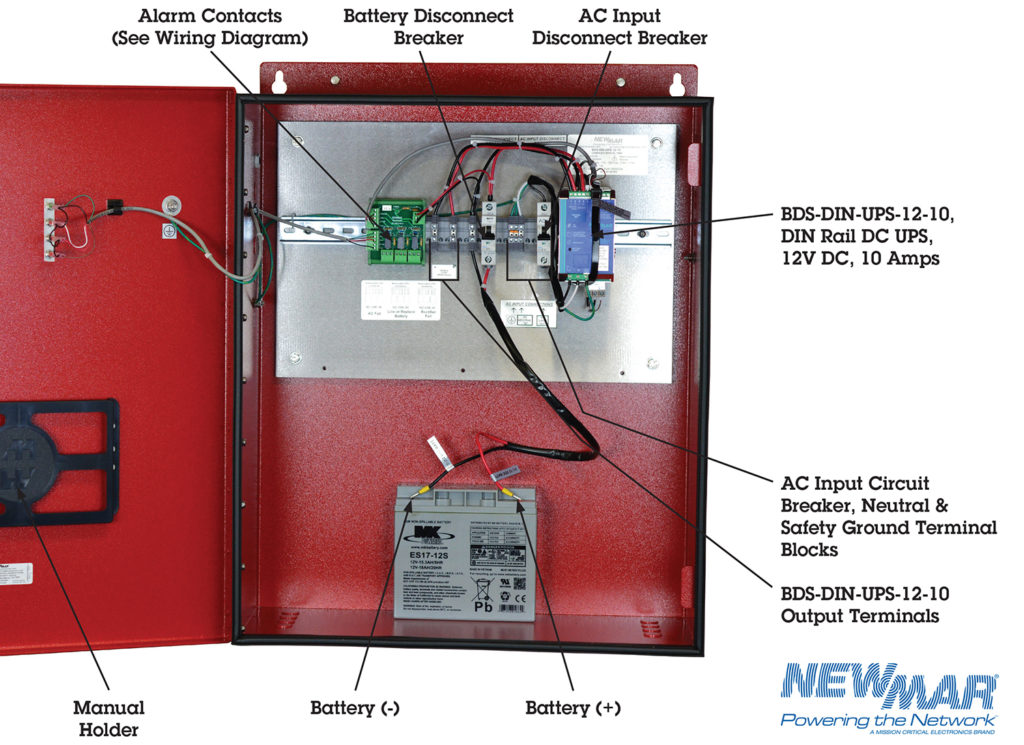

12 Volt, 18 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


Public-Safety DAS Power PE-Enclosure 12VDC 120 Watts 18AH UL Listed to UL Standards 2524 & 924 PE-12V-120-18AH-UL2524 Newmar Powering The NetworkModel: PE-12V-120-18AH-UL2524
Specifications:
Voltage: 12V DC
DC Output: 120 Watts
Battery Back-Up: 18 Amp-Hour

12 Volt, 55 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


PE Series DC Power Enclosure, ETL Listeded to UL Standard 2524 and 924, NFPA 1221 Standards 12V DC, 120 Watts, 55 Amp-Hours, Site Power-Monitor, model PE-12V-120W-55AH-UL2524Model: PE-12V-120-55AH-UL2524
Specifications:
Voltage: 12V DC
DC Output: 120 Watts
Battery Back-Up: 55 Amp-Hour
PE Instruction Manual

12 Volt, 100 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


PE Series DC Power Enclosure, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Standards 12V DC, 120 Watts, 100 Amp-Hours, Site Power-Monitor, Manual PE-12V-120-100AH-UL2524Model: PE-12V-120-100AH-UL2524
Specifications:
Voltage: 12V DC
DC Output: 120 Watts
Battery Back-Up: 100 Amp-Hour
PE Instruction Manual

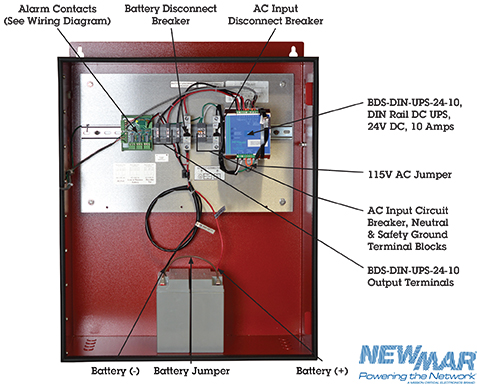

24 Volt, 18 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


PE Series DC Power Enclosure, ETL Certified to UL Standard 924, NFPA 1221 Standards 24V DC, 240 Watts, 18 Amp-Hours, Site Power-Monitor, model PE-24V-240W-18AH-ULModel: PE-24V-240-18AH-UL2524
Specifications:
Voltage: 24V DC
DC Output: 240 Watts
Battery Back-Up: 18 Amp-Hour

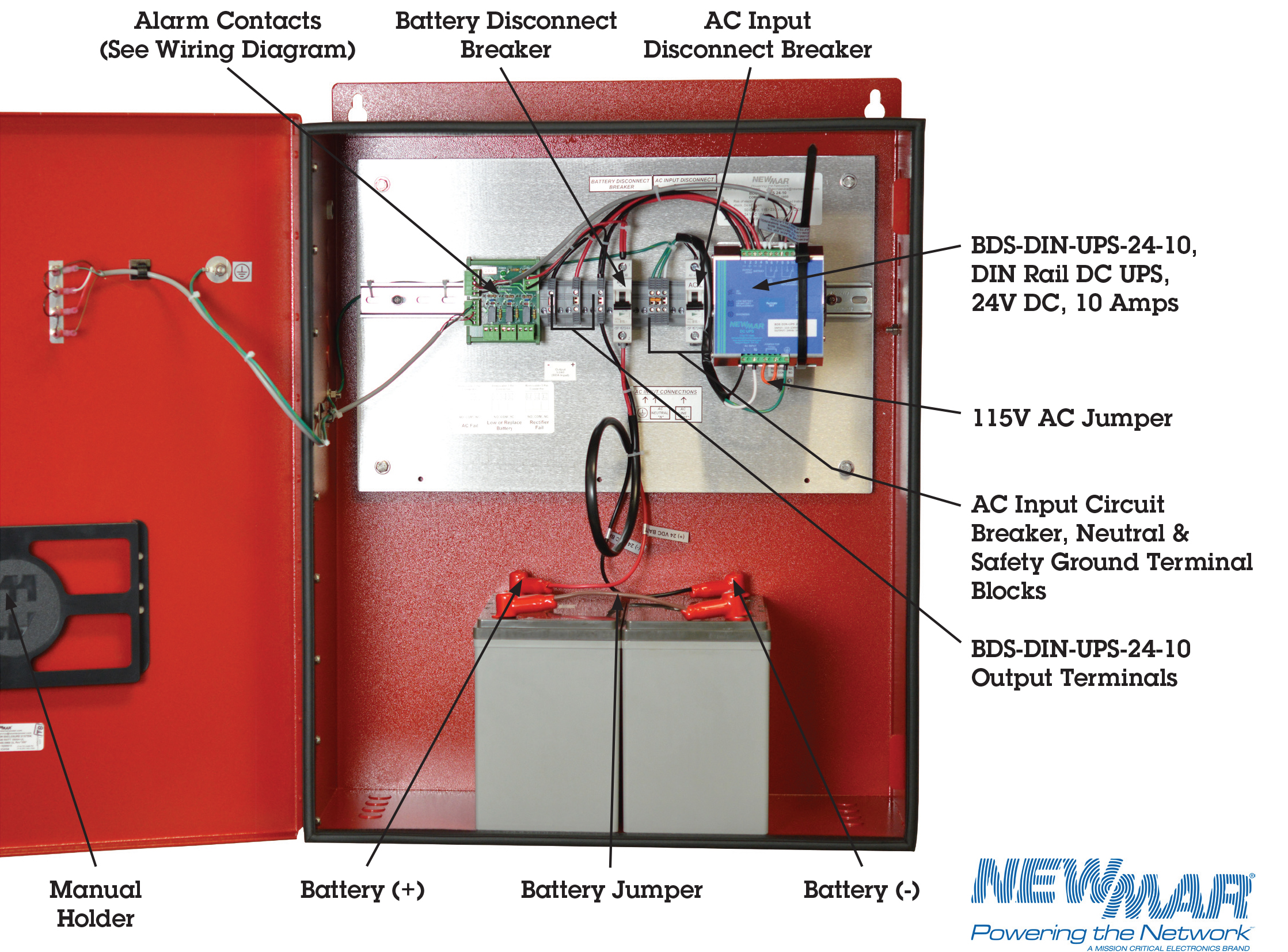

24 Volt, 55 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


PE Series DC Power Enclosure, UL Listed to UL Standards 2524 & 924, NFPA 1221 Standards 24V DC, 240 Watts, 55 Amp-Hours, Site Power-Monitor, model PE-24V-240-55AH-UL2524Model: PE-24V-240-55AH-UL2524
Specifications:
Voltage: 24V DC
DC Output: 240 Watts
Battery Back-Up: 55 Amp-Hour
PE Instruction Manual

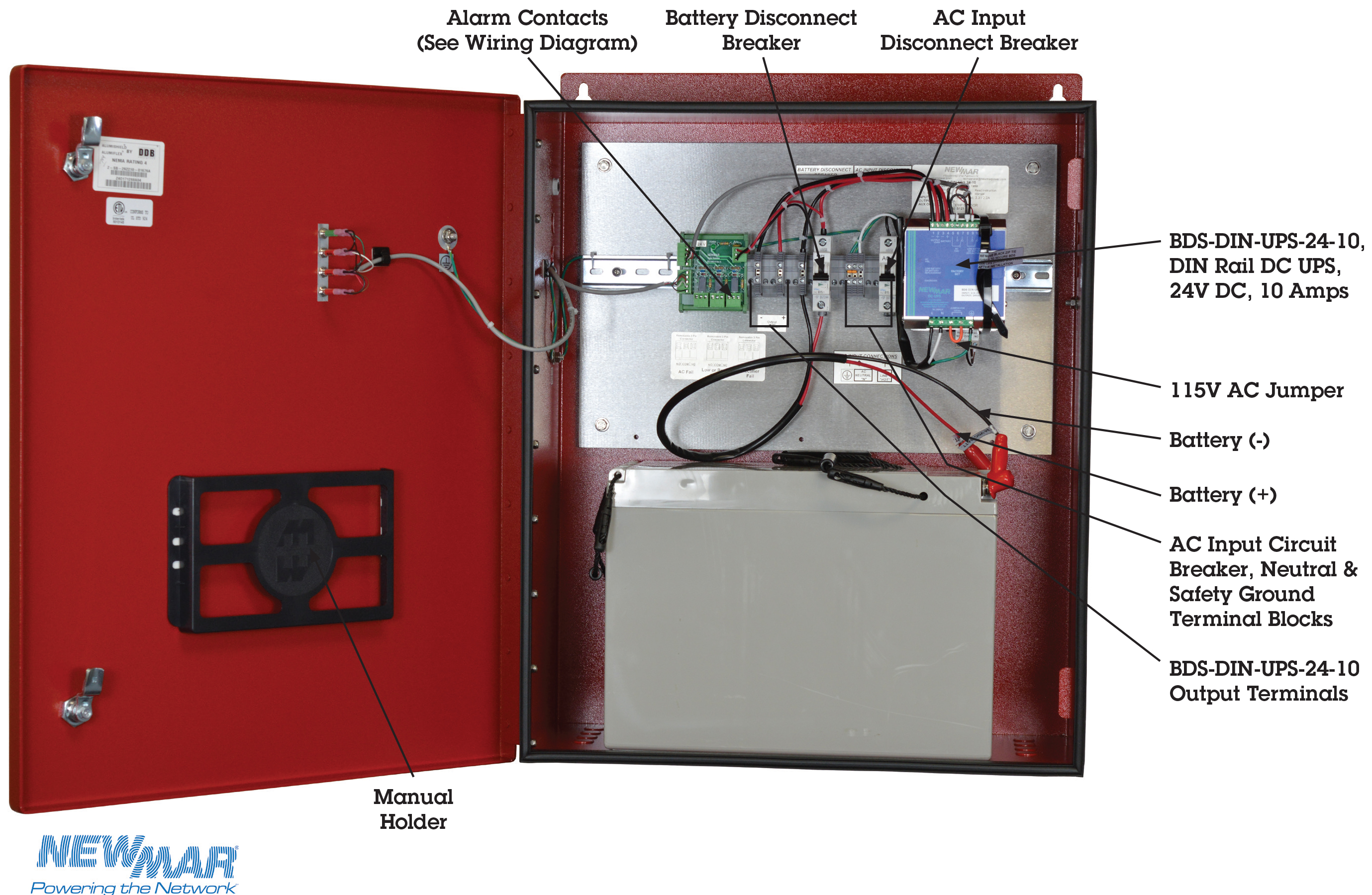

24 Volt, 100 Amp-Hour, ETL Listed to UL Standards 2524 &924, NFPA 1221 Integrated Power System


PE Series Power Enclosure 24VDC 100AH UL-Listed to UL Standards 2524 & 924 NFPA-1221 Compliant Public Safety DAS Power model PE-24V-240-100AH-UL2524 by Newmar Powering the NetworkModel: PE-24V-240-100AH-UL2524
Specifications:
Voltage: 24V DC
DC Output: 240 Watts
Battery Back-Up: 100 Amp-Hour

48 Volt, 18 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


PE Series DC Power Enclosure, UL Listed to UL Standards 2524 & 924, NFPA 1221 Standards 48VDC, 480 Watts, 18 Amp-Hours, Manual PE-48V-480-18AH-UL2524Model: PE-48V-480-18AH-UL2524
Specifications:
Voltage: 48V DC
DC Output: 480 Watts
Battery Back-Up: 18 Amp-Hour
PE Instruction Manual

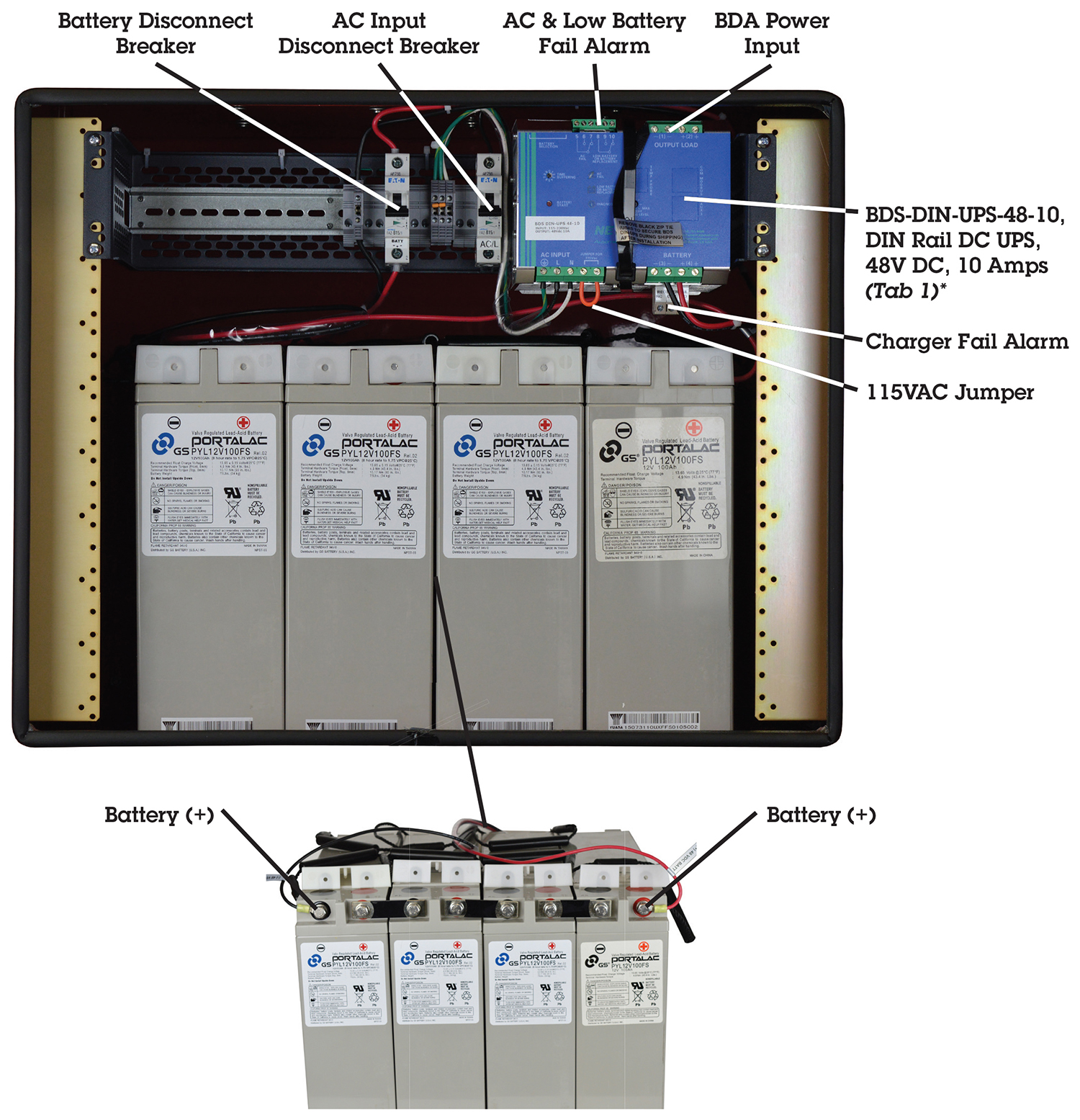

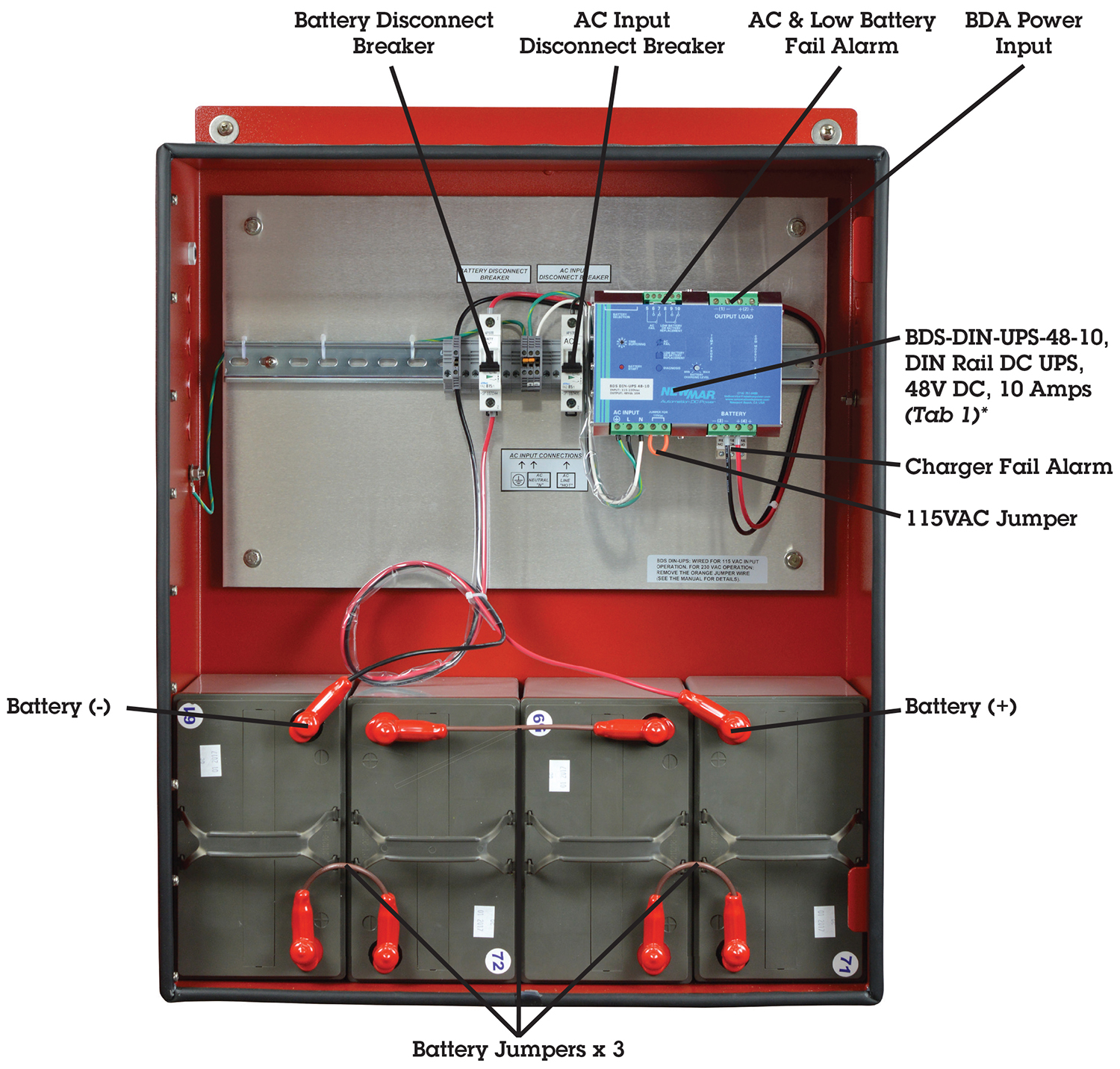

48 Volt, 55 Amp-Hour, ETL Listed to UL Standards 2524 & 924, NFPA 1221 Integrated Power System


PE Series Power Enclosue 48VDC 55AH UL Listed to UL Standards 2524 & 924 NFPA-1221 Compliant Public-Safety DAS Power model PE-48V-480W-55AH-ULPE by Newmar Powering the NetworkModel: PE-48V-480-55AH-UL2524
Specifications:
Voltage: 48V DC
DC Output: 480 Watts
Battery Back-Up: 55 Amp-Hour
PE Instruction Manual



Non-UL PE Series Enclosures

ModelDC VoltageDC UPS Power WattsBattery A/H Capacity**Enclosure Case SizeSystem Weight (Lbs.)Shipping Weight (Lbs.)
PE-12V-120W-18AH12V DC1818A4989
PE-12V-120W-55AH12V DC5555A75115
PE-12V-120W-100AH12V DC60100A111151
PE-24V-240W-18AH24V DC3618A63103
PE-24V-240W-55AH24V DC11055A114154
PE-24V-240W-100AH24V DC120100A186226
PE-48V-480W-18AH48V DC7218A90130
PE-48V-480W-55AH48V DC20055A190230
PE-48V-480W-100AH48V DC480100B371411
PE-110V-100W-100AH/24V110V AC96100A191231
