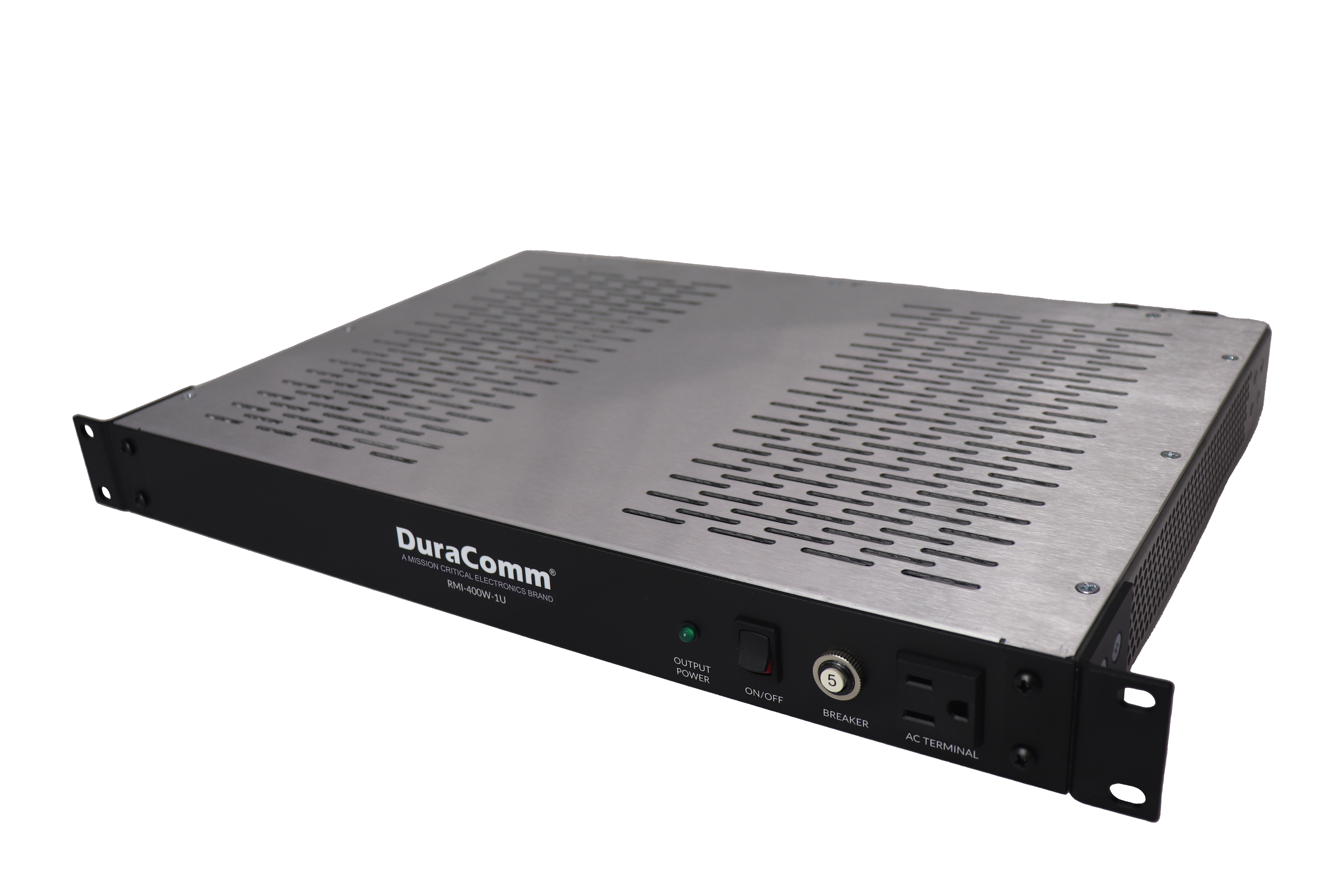

RMI-400W-1U, RMI-800W-1U
The 400W and 800W Rackmount Inverters from DuraComm are the first additions to their new inverter product line.
These 1RU, 400 & 800 W true-sine wave inverters are designed to provide seamless 120 VAC 50/60 Hz back-up power for AC powered communications equipment from the site’s 48 VDC power system. Ensure equipment operation remains uninterrupted in the event of a power grid failure or if the site utility power is disconnected for maintenance or upgrade purposes.
REQUEST ADDITIONAL INFORMATION:
Key Features
- True-sine wave output
- Wide operating temp range
- RMI-400W-1U features 4 NEMA 5-20R AC receptacles (1 front, 3 rear)
- RMI-800W-1U features 8 NEMA 5-20R AC receptacles (2 front, 6 rear) in an A & B configuration
- Standard 19” 1U rackmount
- Built-in protection
- Input: reverse polarity/over voltage
- Output: short circuit/overload/over temperature
Electrical Specifications
|
Description |
Min |
Nominal |
Max |
Units |
|
Input Voltage |
40 |
48 |
66 |
VDC |
|
Input current |
|
10 |
|
A |
|
Efficiency |
|
93 |
|
% |
|
Output Voltage |
|
110 |
|
VAC |
|
Output Frequency |
|
50/60 ±0.1 |
|
Hz |
|
Output power |
|
400/800 |
|
W |
|
Waveform |
True sine wave (THD <3%) |
|||
|
Inline fuse |
|
10x2 |
|
A |
Mechanical Specifications
- Length: 13”
- Width: 19”
- Height: 1.75”
- Weight: 3.9 lbs (400W) & 7.2 lbs (800W)
Environmental Specifications
- Working Temperature: -20 to +70°C
- Working Humidity: 20-90% RH non-condensing
- Storage Temperature: -30 - *70°C
- Working Humidity: 10-95% RH non-condensing
- Vibration: 10-500hz, 3G 10min/1 cycle, 60 min each along X, Y, Z axis
EMC Emissions
|
Parameter |
Standard |
Test Level |
|
Radiated |
FCC |
Test Level Class A |
|
Harmonic Current |
BS/EN61000-3-2 |
|
|
Voltage Flicker |
BS/EN6100-3-3 |
|
EMC Immunity
BS EN/EN55024, BS EN/EN55035
|
Parameter |
Standard |
Test Level |
|
ESD |
BS/EN6100-4-2 |
Level 4, 15KV air; Level 4, 9KV contact |
|
Radiated |
BS/EN6100-4-3 |
Level 3, 10 V/m |
|
Magnetic Field |
BS/EN6100-4-8 |
Level 4, 30A/m |
Safety & EMC
- Safety Standards: CB IEC62368
- Withstand Voltage: DC I/P - AC O/P:3.0KVac AC O/P - FG:1.5KVac
