Power Modules, Rackmount DC Power System, 12V, 24V, and 48V DC, 560 - 2000 Watts, 10-80 Amps by Newmar Powering the Network

12V, 24V and 48V DC, 560 - 2000 Watts, 10 -80 Amps, DC Power Systems

These versatile Rectifier Modules function as either power supplies or battery chargers for 12, 24 or 48 volt systems; positive, negative or floating ground. They may be employed singly or in combination, enabling the installer to scale the system anywhere from 500 to 10,000 watts per rack. Units may be paralleled for N + 1 redundancy and alarm contacts allow local or remote monitoring. An optional DC quick connect wiring kit allows easy replacement of modules without system shutdown.

Power Modules may be used separately as a power source, or they may be integrated with the Power Function Manager (see RPS System to greatly expand the DC power system capability with other functions such as digital output monitoring, powering multiple loads via circuit breaker distribution and low voltage battery disconnect).

California's Prop 65 warning website

Features

  • 12, 24 or 48 volts output; pos., neg. or floating ground
  • 115 or 230 VAC, 50-60 Hz input 560 & 1000 watt models
  • 230 VAC only 2200 watt model
  • 560, 1000 or 2200 watts per module (approx.)
  • Built-in oring diode for parallel or N + 1 configuration
  • Power supply or battery charger operation (DC UPS system)
  • Optional battery charging circuit: three-step charging, gel/lead-acid switch, and temperature compensation
  • Form C alarm contacts
  • 19", 2 RU, flush or 6" forward rackmount

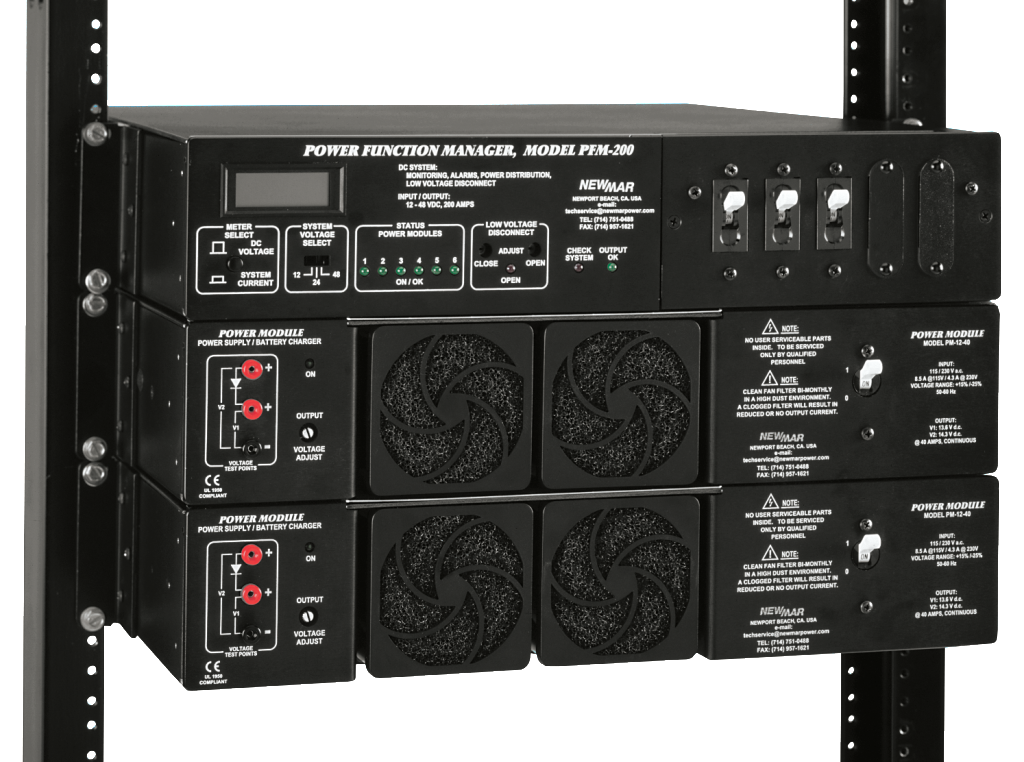

Rack Mount Power Module Series, 12V DC, 24V DC and 48V DC with Power Function Manager, model PFM-500, integrated DC Power System image by Newmar Powering the NetworkPower Modules integrated in complete
DC Power System

Specifications: Power Module Series

Model Input Amps
@ Full Load
115/230V		 Output Watts Weight
VDC
V Out		 VDC
V2		 Amps
Cont.+
Lbs Kg.
PM-12-40 8.5/4.3 13.6 14.3 40 560 12.2 5.5
PM-12-80 13/7 13.6 14.3 80 1000 15.2 6.9
PM-24-20 8.5/4.3 27.2 27.9 20 560 12.2 5.5
PM-24-40 13/7 27.2 --- 40 1000 15.2 6.9
PM-48-10 8.5/4.3 54.4 55.1 10 560 12.2 5.5
PM-48-20 13/7 54.4 --- 20 1000 14.0 6.4
PM-48-50 */22 54.4 --- 50 2200 34 15
VDC (V out) Measured at output terminal with oring diode* 230 VAC input onlyVDC (V2) Measured at direct output terminal+ For parallel configuration/load sharing derate output 10%

Performance Specifications

Input:
85 - 135/170-270 VAC (selectable), 47 - 63 Hz., 560 watt models
90 - 265 VAC, 1000 watt models
207 - 253 VAC, 2200 watt model

Power Factor:
0.7, 560W & 2200W models
0.98, 1000W models

Regulation: +/- 1% at direct output (V2); +/- 2% through "oring" diode (V out)

Ripple: 1% (Typical)
Efficiency: 80-85% @ full load
Front panel Output Voltage Adjustment Pot Range: +/- 10%
Altitude Range: Full output to 5,000 feet. Derate output current 4% per 1,000 feet to 10,000 feet max.

Temperature Rating

560 watt models: -40˚ C; Derate linearly from 100% load @ 50˚ C to 75% @ 60˚ C
1000 watt models: -20˚ C; Derate linearly from 100% load @ 50˚ C to 50% @ 70˚ C
2200 watt model: 0 - 50˚ C

Mechanical/General

  • Powder coated aluminum front panel and cover
  • Vinyl laminated base and cover
  • 19" Rackmount brackets provided
  • Wallmount via optional brackets
  • AC Input wiring:
    • 560 watt units: IEC AC entry, 6' IEC cord with NEMA 5-15 plug provided
    • 1000 watt units: IEC entry, 6' IEC power cord with NEMA 20 plug provided
    • 2200 watt unit: Hardwire junction box, no power cord provided
  • 1/4" -20 Output stud (560 watt models)
  • Output bus bar (1,000 and 2200 watt models) with 1/4" - 20 bolts
  • Output "OK" L.E.D.
  • Multi color LED: Green = Ok, Red = Fail (1000W models only)
  • Loss-of-output alarm contacts- Form C, plus loss of AC alarm contacts - Form C (1000 and 2200 watt units only)
  • Front panel voltage test points

Options

  • Three stage charger function with gel/ lead-acid selector Model: CFB (560 & 1000 watts only)
  • Temperature compensation (for battery charging). All models.
  • DC Quick Connect Wiring Kit:
    • 560 watt models: QCK-3 (for 2-3 unit PM system) & QCK-6 (for 4-6 unit PM system)
    • 1000 watt models: QCK-3A (for 2-3 unit PM system) & QCK-6A (for 4-6 unit PM system)
    • 2200 watt model: CCK-4
  • "Universal" mounting bracket; Model: UMB-PM (500 & 1KW models only)
  • Metering, alarms, LVD and distribution breakers (PFM-500 or ULM-100 module options)

Protection

  • Output fuse for reverse polarity
  • Current limit
  • Input circuit breaker
  • Automatic high temp. output
    power reduction (560W & 2200W models)
  • Forced air cooling with filter provided (560W models only)

Design Standards

  • UL 1950 / EN 60950 (Safety)
  • EN 50082 (Immunity)
  • EN 55014 (Conducted)
  • Case Size - All Models

Case Size - All Models

Height X Width* X Depth
Inches: 3.5 X 17 X 20.5
Centimeters: 13.5 X 43.2 X 52.1
*19" mounting brackets provided
