Quick Connects & Rear Rack Covers

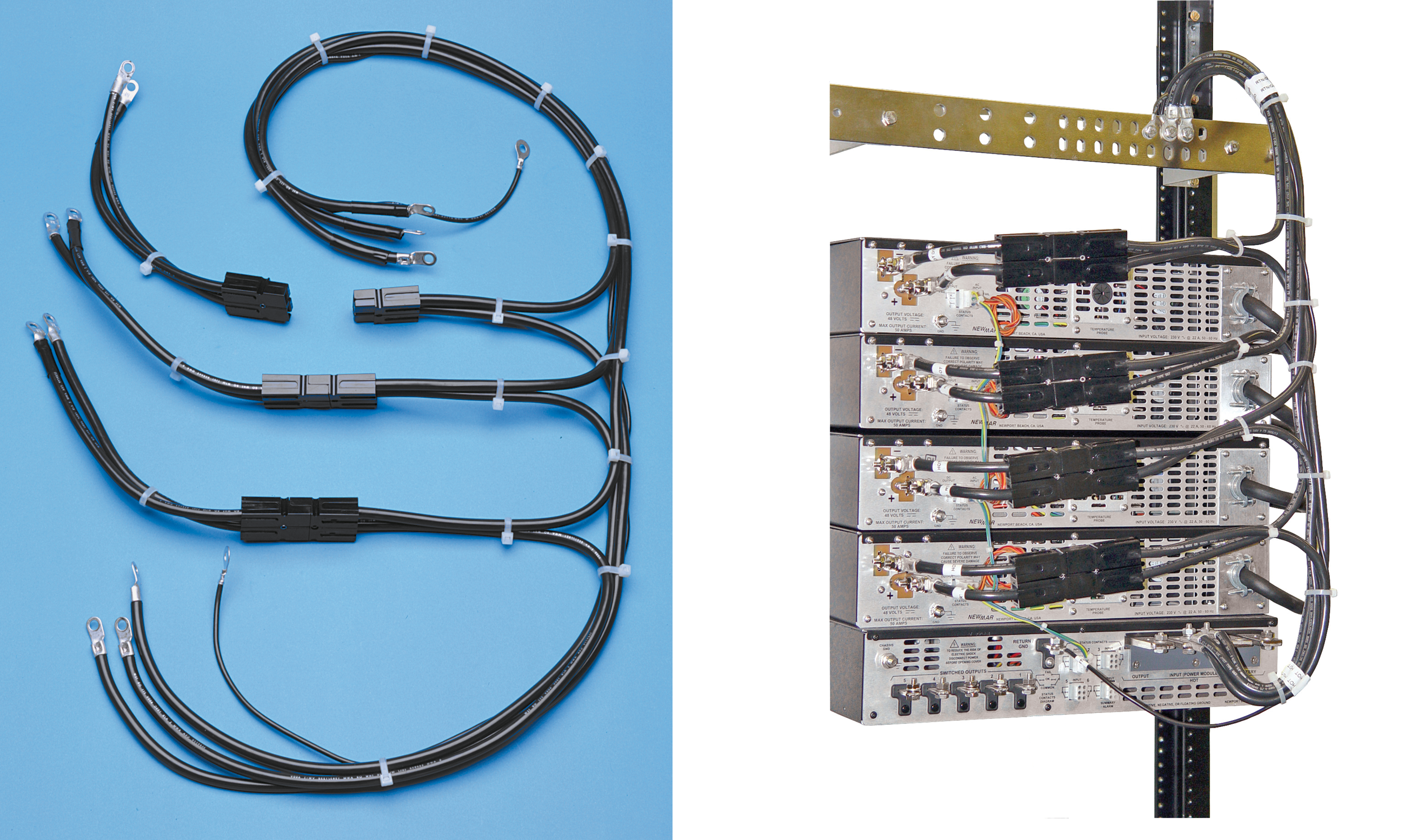

Quick Connect Wiring Kits
- Designed specifically for use with NEWMAR PM Series Power Modules and Power Function Manager in stacked rack configuration.
- Allow for quick installation and removal of rectifiers
- Wiring harness is fitted with “Anderson” quick-connect and ring lug terminals; all wires tie-wrapped into proper position for quick and easy installation.
- Simplifies parallel wiring multiple modules
- Facilitates “hot” change-out of modules without system shutdown
| Models | Description | AWG | Weight |
|---|---|---|---|
| QCK-3 | for up to 3 Power Modules, 70A rating | 6 | 3 Lbs. |
| QCK-3A* | for up to 3 Power Modules, 80A rating | 4 | 3 Lbs. |
| QCK-6 | for up to 6 Power Modules, 70A rating | 6 | 4 Lbs. |
| QCK-6A* | for up to 6 Power Modules, 80A rating | 4 | 4 Lbs. |
| CCK-4 | for up to 4 Power Modules (2200 Watt) | 6 | 6 Lbs. |
| * PM-12-80 – only use QCK-3A or QCK-6A | |||
Rear Rack Covers
- Clear plastic panels attach to rear of racks to protect service personnel by preventing accidental contact with “live” terminals, etc., from top, sides and rear.
- Holes in rear panels allow for flow-through ventilation of fan-cooled components
- May be installed at 14″ or 17″ rear depth
- Multiple covers may be stacked to accommodate system height
- All mounting hardware included
| Model | Rack Height (1RU = 1.75”) | Rack Width | Weight (Lbs.) |
|---|---|---|---|
| RRC-3-19 | 3 RU | 19” | 4 |
| RRC-7-19 | 7 RU | 19” | 5 |
| RRC-3-23 | 3 RU | 23” | 5 |
| RRC-7-23 | 7 RU | 23” | 6 |
