Rackmount Trays and Shelves
Battery Trays
- Heavy gauge cold rolled steel trays fit standard 19” racks
- Ideal for holding up to four 100 amp-hour front terminal batteries
- Powder coat finish
- Mounting hardware supplied
23” trays also available in various depths. Contact factory and specify requirements.
| Model | Tray Area | Weight Capacity | Colors | Ship Weight |
|---|---|---|---|---|
| T 19″ x 19″ | 17.25″ x 19.04″ | 350 lbs | Black | 12 lbs |
| T 19″ x 21″ | 17.25″ x 22.3″ | 400 lbs | Black or Gray | 17 lbs |

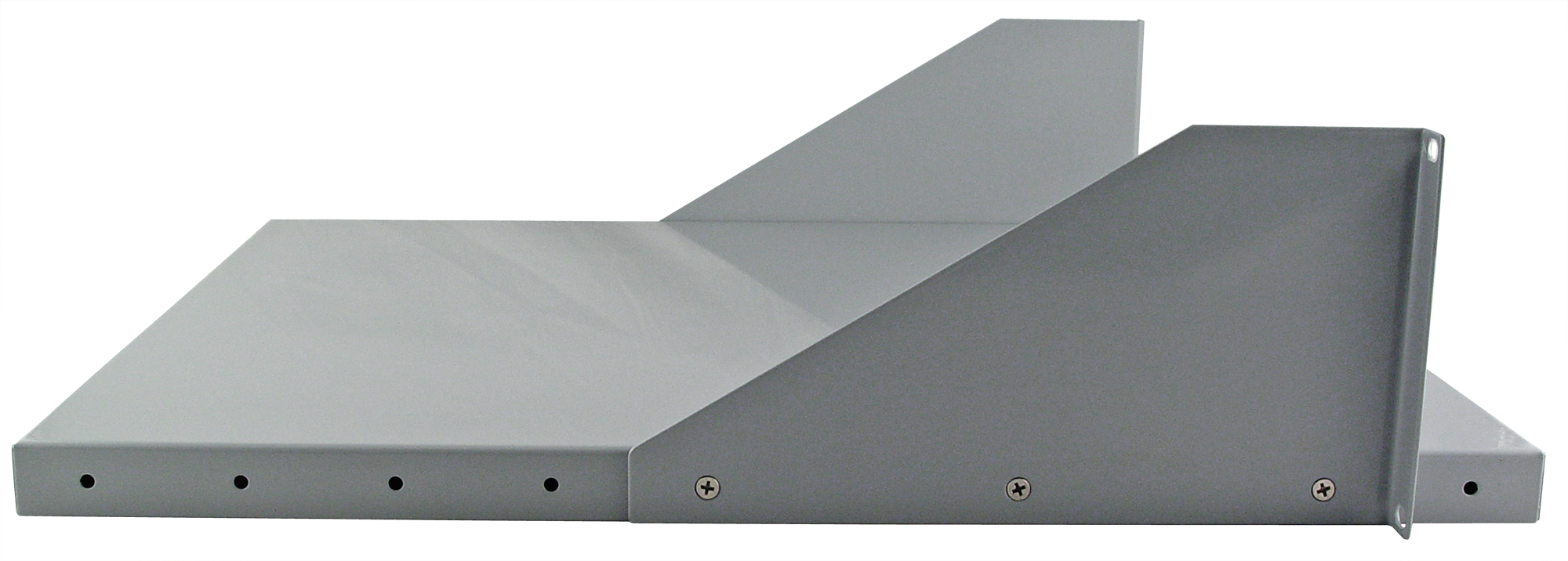

Adjustable Equipment Rack Shelves
- Fits standard 19” racks
- Adjustable depth for balancing and desired front projection
- 16 gauge cold rolled steel with powder coated finish
- Flanged sides for added strength
- Supports up to 200 lbs.
- Mounting hardware included
| Model | Shelf Area | Weight Capacity | Colors | Ship Weight |
|---|---|---|---|---|
| S 19″ x 16″ Adjustable | 17.56″ x 16″ | 200 lbs | Black or Gray | 10 lbs |
| S 19″ x 20″ Adjustable | 17.56″ x 20″ | 200 lbs | Black or Gray | 11 lbs |

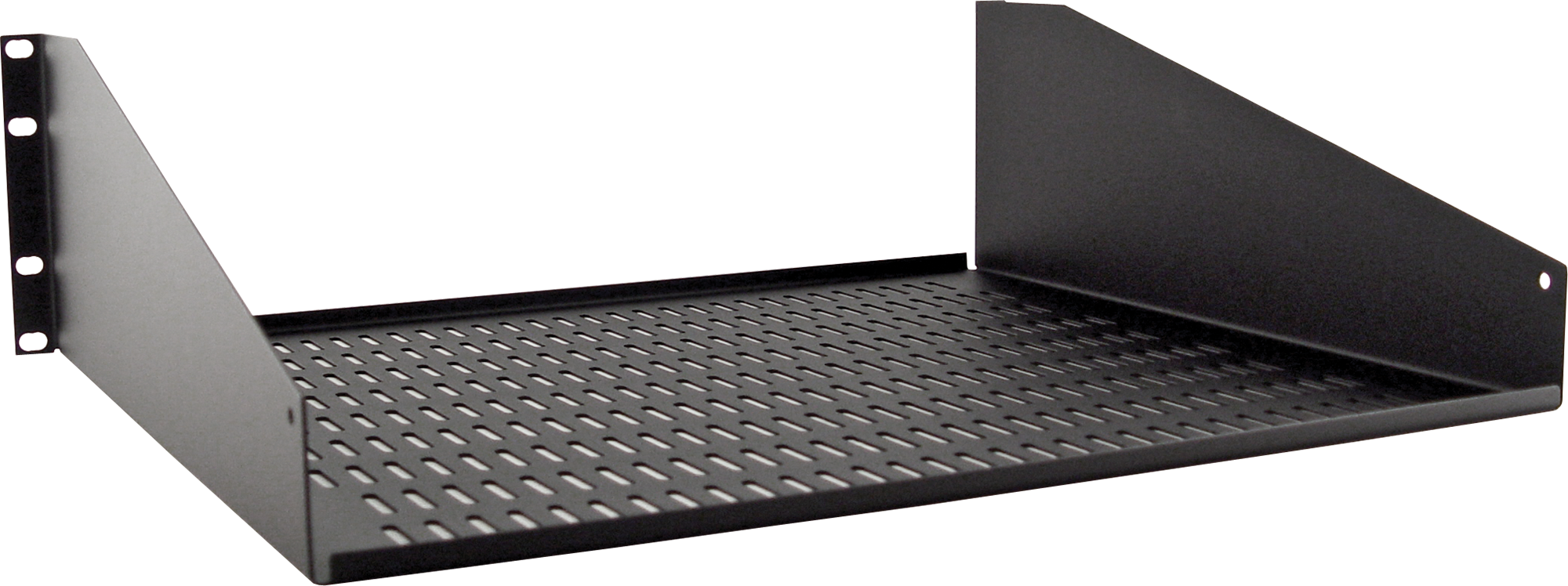

Ventilated Equipment Rack Shelves
- Fits standard 19” racks
- Vent holes in tray bottom allow air flow to cool equipment
- 16 gauge cold rolled steel with powder coated finish
- Supports up to 150 lbs
- Mounting hardware included
| Model | Shelf Area | Weight Capacity | Colors | Ship Weight |
|---|---|---|---|---|
| S 19″ x 16″ Ventilated | 17.5″ x 14.87″ | 150 lbs | Black or Gray | 10 lbs |
